As the strongest commercially available permanent magnet material in the world, sintered Neodymium-Iron-Boron (NdFeB) offers unmatched magnetic efficiency, ultra-high energy density, and an exceptional cost-to-performance ratio. From Electric Vehicle (NEV) drive motors and direct-drive wind turbines to precision surgical sensors and industrial separators, selecting the exact grade, geometry, and thermal threshold of an NdFeB magnet dictates the operating lifecycle of your end product.
With over two decades of technical expertise in rare earth magnet development, an annual production capacity of 8,000 tons (with 5,000+ tons active output), and full compliance with IATF 16949:2016, ISO 14001:2015, and ISO 45001:2018, MagnetGlobal delivers this comprehensive engineering guide to help procurement officers and design engineers master NdFeB specification.
1. Grade Classification & Thermal Performance Matrix
Sintered NdFeB magnets are metallurgically classified by two fundamental metrics: Remanence (Br), which defines magnetic flux output, and Intrinsic Coercivity (Hcj), which represents resistance to thermal and electromagnetic demagnetization.
Choosing the right grade balances peak energy density against working temperature limits.
| Grade Series | Max Energy Product (BH)max | Remanence (Br) | Intrinsic Coercivity (Hcj) | Max Working Temp | Target OEM Applications |
| N33 – N55 | 31 – 53 MGOe (247-406 kJ/m3) | 1.13 – 1.46 T | >= 12 kOe (>= 955 kA/m) | <= 80 deg C | Consumer electronics, audio transducers, magnetic couplings |
| N30M – N52M | 33 – 43 MGOe (263-366 kJ/m3) | 1.18 – 1.46 T | >= 14 kOe (>= 1114 kA/m) | <= 100 deg C | Industrial automation, holding assemblies, brushless DC motors |
| N30H – N52H | 31 – 43 MGOe (247-342 kJ/m3) | 1.14 – 1.34 T | >= 17 kOe (>= 1353 kA/m) | <= 120 deg C | Servo motors, elevator traction drives, automotive actuators |
| N30SH – N48SH | 28 – 40 MGOe (223-326 kJ/m3) | 1.08 – 1.31 T | >= 20 kOe (>= 1592 kA/m) | <= 150 deg C | EV drive motors, high-speed generators, liquid line separators |
| N28UH – N50UH | 26 – 37 MGOe (207-295 kJ/m3) | 1.03 – 1.24 T | >= 25 kOe (>= 1990 kA/m) | <= 180 deg C | Aerospace sensors, high-pressure pumps, oil & gas tools |
| N28EH – N48EH | 26 – 31 MGOe (207-247 kJ/m3) | 1.03 – 1.13 T | >= 30 kOe (>= 2388 kA/m) | <= 200 deg C | Extreme thermal environment motors, magnetic braking systems |
| N28AH – N45AH | 26 – 31 MGOe | 1.03 – 1.13 T | >= 33 kOe | <= 220-240 deg C | Mission-critical automotive powertrain and aerospace assemblies |
2. Breakthrough Metallurgy: Grain Boundary Diffusion (GBD) Technology
Historically, enhancing the high-temperature stability (Hcj) of Neodymium magnets required adding heavy rare earth elements—such as Dysprosium (Dy) or Terbium (Tb)—into the primary alloy. However, traditional bulk alloying reduces the magnet’s overall residual induction (Br) and dramatically increases raw material costs.
Our proprietary Grain Boundary Diffusion (GBD) process circumvents this performance penalty:
Substrate Pretreatment -> Loading -> Magnetron Sputtering (Dy/Tb) -> Diffusion Heat Treatment
The Technical & Economic Advantage of GBD:
-

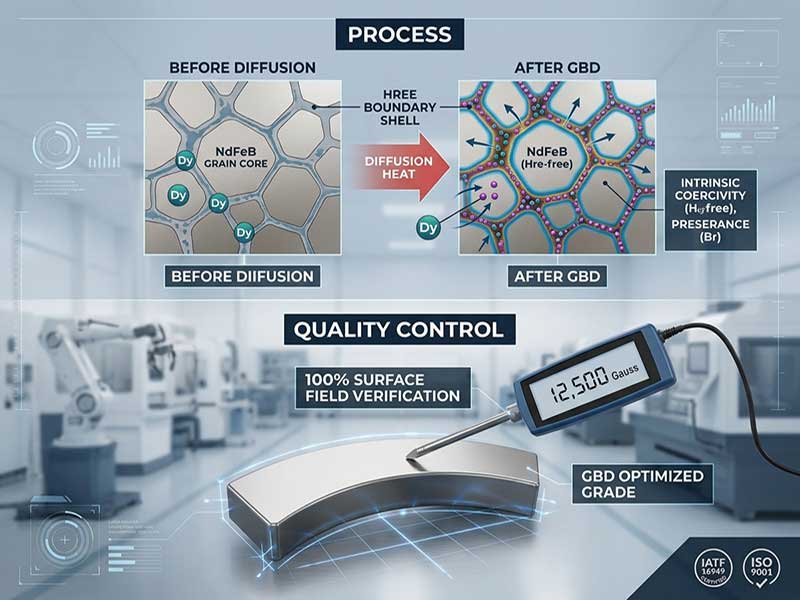

Targeted Microstructure: Dy/Tb target materials are atomized via magnetron sputtering and thermally diffused strictly along the grain boundaries of the sintered Nd2Fe14B matrix, rather than penetrating the main crystal core.
-
Higher Hcj Without Br Loss: Intrinsic coercivity is boosted by up to 30-50%, allowing standard N-grade base alloys to operate at elevated temperatures without lowering magnetic flux density.
-
Direct Cost Reduction: GBD decreases heavy rare earth consumption by up to 60%, passing substantial direct savings onto OEMs without compromising thermal integrity.
3. The 12-Step Quality-Controlled Manufacturing Workflow
To ensure zero-defect production across high-volume global shipments, every order follows a strictly validated 12-step metallurgy protocol:
- Raw Material Preparation: Precise weighing of virgin Neodymium, Iron, Boron, and minor alloying additions (Co, Al, Cu, Nb).
- Strip Casting (SC): Rapid thermal quenching to produce micro-crystalline alloy flakes with optimal phase distribution.
- Hydrogen Decrepitation (HD): Exothermic hydrogen absorption to break down SC flakes into friable coarse particles.
- Jet Milling: Micron-level pulverization under high-purity inert N2 gas to achieve narrow grain-size distribution (3.0 – 5.0 um).
- Magnetic Orientation Pressing: Aligning powder domains under a 1.5 – 2.5 Tesla magnetic field combined with high-tonnage transverse hydraulic pressing.
- Vacuum Sintering: Densification in high-vacuum furnaces at 1050 – 1100 deg C, followed by multi-stage aging heat treatments.
- Magnetic Property Inspection: 100% curve verification using B-H hysteresisgraph meters to validate Br, Hcb, Hcj, and (BH)max.
- Precision Machining: Wire EDM slicing, CNC core drilling, and profile grinding to exact drawing tolerances.
- Grain Boundary Diffusion (GBD): Optional surface sputtering and thermal diffusion for UH, EH, and AH series.
- Surface Coating & Plating: Multi-layer protection options (Ni-Cu-Ni, Zinc, Epoxy, Phosphating, PTFE) tested via 48 to 96-hour Neutral Salt Spray (NSS) protocols.
- Magnetization & Flux Inspection: Multi-pole radial, axial, or diametrical magnetization with automated Helmholtz coil flux testing.
- IATA-Certified Shielded Packaging: Anti-magnetic vacuum packaging to ensure smooth customs clearance and safe air/sea transport.
4. Custom Geometries & Engineering Configurations
We manufacture custom permanent magnets tailored precisely to your mechanical blueprints:
[Disc / Cylinder] [Ring / Tube] [Block / Rectangle] [Countersink Disc]
┌───────┐ ┌───────┐ ┌───────────────┐ ┌───┬───┐
│ N │ │ N │ │ │ N │ │ N ╲ ╱ N │
├───────┤ ├───┼───┤ ├───────────────┤ ├───┼─┼───┤
│ S │ │ S │ │ │ S │ │ S ╱ ╲ S │
└───────┘ └───────┘ └───────────────┘ - N45 Permanent NdFeB with Countersink: Designed for mechanical fasteners, flush-mount brackets, and automated jigs.
- Radially Magnetized Rings: Single-piece ring structure featuring multi-pole orientation on the OD/ID for high-efficiency BLDC rotors.

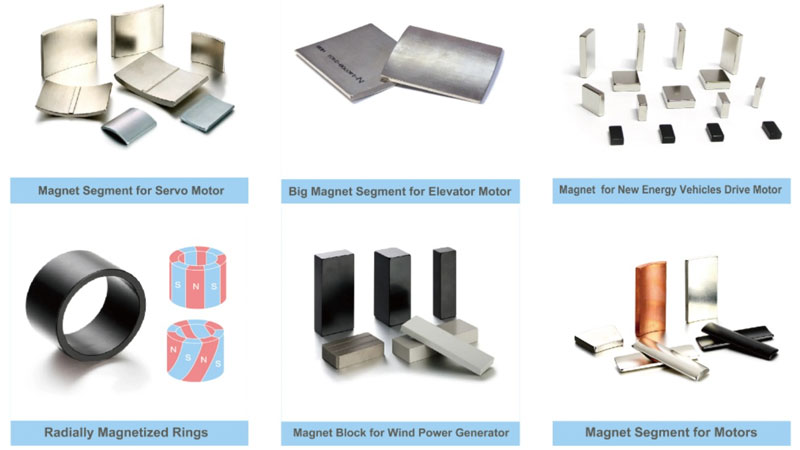

- Arc & Tile Segments: Custom curved profiles optimized for elevator traction motors, industrial servomotors, and electric vehicle powerplants.
- Large Power Blocks: Heavy-duty square blocks engineered for wind generator stator stacks and industrial magnetic separators.
5. Machining Tolerances & Surface Protection Standard
Precision Machining Capabilities
- Standard Dimensional Tolerance: +/-0.10 mm
- Precision Machined Tolerance: +/-0.05 mm to +/-0.01 mm (for high-rpm motor assemblies)
- Concentricity & Parallelism: Up to 0.02 mm
Surface Plating & Environmental Protection
| Coating Type | Thickness | Salt Spray Resistance (NSS) | Best Operating Environment |
| Triple-Layer Ni-Cu-Ni | 15 – 25 um | 24 – 48 Hours | Standard dry industrial indoor setups |
| Zinc (Zn / Blue-White) | 8 – 15 um | 12 – 24 Hours | Budget-sensitive mechanical assemblies |
| Black / Clear Epoxy | 15 – 30 um | 96 – 250 Hours | Humid, coastal, or mildly acid/alkali exposures |
| Ni-Cu + Epoxy Double Coating | 20 – 35 um | > 200 Hours | Marine equipment and automotive under-hood sensors |
| Parylene / PTFE (Teflon) | 10 – 20 um | > 500 Hours | Medical devices, high-purity fluid pumps, lab tools |
Why Partner with MagnetGlobal for OEM Sourcing?
Sourcing raw rare earth magnets requires a supplier capable of ensuring material purity, consistent magnetic flux, and long-term supply chain security.
- 20+ Years Expertise: Over two decades of R&D innovation in rare earth materials.
- Stable Factory Supply: 8,000 tons annual capacity ensures your production line never experiences supply bottlenecks.
- Rapid Sample Turnaround: Custom prototype sample creation in just 7 business days.
- Accelerated Mass Production: Standard 15-day lead time for production batches exceeding 150 kg.
- Direct Cost Savings: Save 10% or more compared to market middleman rates through direct factory-floor pricing.
- International Certification Compliance: Fully certified under IATF 16949, ISO 9001, ISO 14001, ISO 45001, RoHS, and REACH.
