Industrial Magnetic Grates & Grid Magnets
-Product Highlights
The Easy-Clean Pull-Out Magnetic Grid – also known as an easy-clean pull-out magnetic grate, slide-out magnetic grid separator, or drawer-style magnetic grate — is a stainless steel magnetic separation unit built around a two-part design: a fixed outer frame that mounts directly into an existing hopper, chute, or duct opening, and an inner magnetic rod tray that lifts straight out in a single motion for cleaning. Unlike designs that require releasing a separate latch or interlock before the rods can be withdrawn, the entire rod assembly slides free of the frame in one continuous pull — no tools, no secondary release step, and no partial disassembly, with a full cleaning cycle completed in under 15 seconds. Built for continuous-duty powder and granulate lines across food, chemical, plastics, and pharmaceutical processing, it delivers passive, energy-free ferrous contamination control with minimal hands-on maintenance time.
-Product Highlights

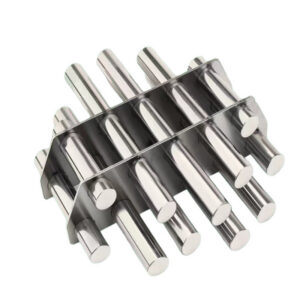

The Food Grade Round Magnetic Grates are heavy-duty permanent magnetic separation systems engineered to deliver superior purity control in high-hygiene production lines. Each circular unit is constructed with a premium 304 or 316L stainless steel housing that holds an optimized array of high-intensity magnetic rods. It is ideally suited for direct integration into round hoppers, vertical chutes, and material pipelines to intercept fine ferrous debris before it reaches downstream machinery. Featuring zero power consumption, straightforward installation, and effortless cleaning, these food-grade round magnetic grates offer a passive, cost-effective solution for treating powders, granular bulk solids, and liquid slurries.
-Product Highlights
The Custom Square Magnetic Grids (also known as square hopper magnets or square magnetic separators) are heavy-duty permanent magnetic separation solutions designed to provide exceptional material purification for industrial processing systems. Each unit is precisely engineered with high-intensity round magnetic rods arranged in a parallel layout, available in either an enclosed square outer frame or an open baffle plate design. This geometric versatility allows the grid to fit seamlessly into square hoppers, rectangular vertical chutes, and square material pipelines to intercept fine ferrous particulate and tramp iron. Operating with zero power consumption and zero maintenance, these custom square magnetic grids effectively protect downstream processing machinery from metal wear and improve final product purity.
– Product Highlights

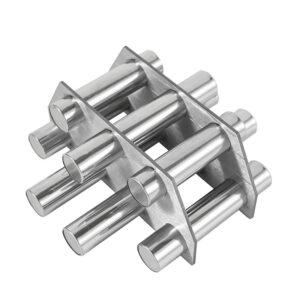

The Stainless Steel Magnetic Filter Grid – also known as a magnetic grate, magnetic grid separator, or industrial magnetic grille — is a permanent magnetic separation system engineered to remove fine ferrous impurities from processing lines carrying dry powders, granular materials, liquids, or thick slurries. High-performance magnetic rods are mounted within a rigid stainless steel framework, allowing the unit to operate continuously with zero electrical energy consumption and no secondary material contamination. Designed for drop-in installation at any critical point in the production flow, it delivers reliable, maintenance-free cross-sectional ferrous contaminant separation without moving parts or ongoing operating cost.
High-Performance Industrial Magnetic Grates & Grid Magnets
How Do Magnetic Grates Remove Ferrous Contaminants?
A magnetic grate places several magnetic rods across the path of a flowing material. As powders, granules, or other suitable materials pass through the grid, ferrous particles are attracted to the rods and held on their surfaces until the grate is cleaned. The assembly operates without an external power supply and can be fitted into a hopper, chute, bin outlet, or compatible processing equipment.
The result depends on how well the material contacts the magnetic field. Rod spacing, the number of layers, material flow, contaminant size, and cleaning frequency all matter. A high surface Gauss reading alone does not establish the separation performance of a complete installation.
Which Magnetic Grate Design Fits Your Equipment?
Round magnetic grates are designed for circular openings such as round hoppers and vertical feed points. The frame diameter and mounting arrangement should match the equipment opening so that material flows through the intended rod area.
Square magnetic grids suit square or rectangular hoppers, chutes, and feed openings. Rod layout and frame dimensions can be adjusted around the available space and expected material flow.
Stainless steel magnetic filter grids provide a framed rod assembly for applications that require a defined installation point. The appropriate housing material, rod configuration, and cleaning access depend on the processed material and surrounding equipment.
Easy clean pull out magnetic grids allow the rod assembly to be withdrawn for cleaning. They are useful where captured metal must be removed frequently or where access to a fixed grid would be difficult. The exact cleaning mechanism should be checked against the selected model.
For custom installations, the frame shape, rod count, rod spacing, mounting flange, and number of grid layers can be specified according to the equipment layout. A staggered arrangement may be considered when greater exposure to the magnetic rods is needed, provided it does not obstruct the required material flow.
Common Industrial Applications
Magnetic grates are used in food ingredient handling, grain milling, plastics processing, chemical production, pharmaceutical material handling, and bulk powder systems. Typical installation points include raw material receiving hoppers, transfer chutes, feed inlets, and positions before equipment such as mills or extruders.
The purpose is to capture ferrous contamination before it travels further through the process. Suitability for a particular food or pharmaceutical line depends on the complete product specification, surface finish, materials, installation design, and the facility’s own hygiene requirements.
What Should You Confirm Before Ordering?
Start with the opening shape and dimensions, the material being processed, and whether the material flows freely or tends to bridge. Then confirm the required stainless steel grade, magnetic rod specification, mounting method, and available clearance for removal and cleaning.
Ask for magnetic strength measurements with the measurement position and method stated. If a particular surface finish, operating temperature, or material document is required, specify it for the chosen model rather than assuming it applies to every magnetic grate. For liquid or slurry applications, also confirm that the complete grid and housing arrangement is suitable for the process.
Cleaning and Routine Inspection
Magnetic grates require regular removal of captured particles. The cleaning interval should reflect the contamination level and production schedule; allowing excessive buildup can reduce the exposed rod surface and affect material flow.
During inspection, check the rods, welds, frame, and mounting points for wear or damage. Where magnetic performance is part of a documented quality process, measurements should be taken and recorded consistently so they can be compared over time.
