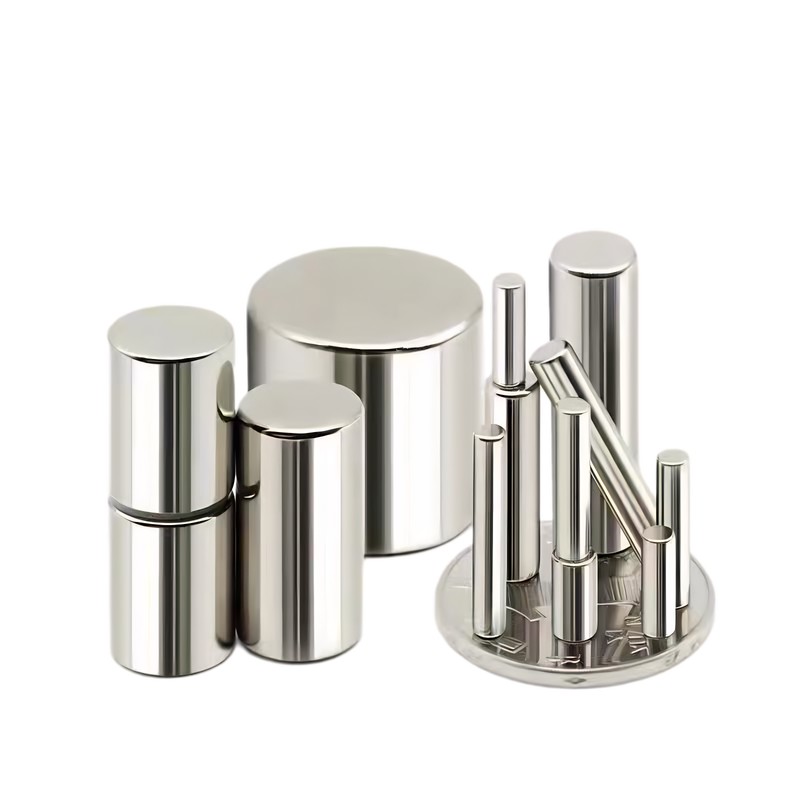

Neodymium Cylinder / Rod Magnets
-Product Highlights
MagnetGlobal’s Neodymium Cylinder and Rod Magnets are precision-ground solid NdFeB cylinders, supplied as raw stock for further machining or as finished components ready for direct installation. These form the same magnetic core material used across our own magnetic rod, grid, and separator product lines — available here as standalone raw material for OEM manufacturers building their own assemblies.
Product Information
Material & Grade Options
Standard grades N35–N52, with high-temperature thermal grades (M, H, SH, UH, EH) available for applications up to 200°C, and SmCo alloy available for applications up to 350°C. Standard Ni-Cu-Ni coating, with Epoxy, Zinc, or PTFE available on request.
Typical Dimension Range
| Dimension | Typical Range |
| Diameter | 2 mm up to 60 mm |
| Length | 5 mm up to 300 mm |
Ranges above reflect common production sizes. Longer or larger-diameter custom cylinders, and non-standard length tolerances, are available on request — send us your drawing or required dimensions for a quote.
Key Advantages
- Direct Factory Sourcing: The same core material we use in our own magnetic rod and separator products, available to OEM buyers at factory-direct pricing.
- Machining Precision: Diameter and length held to ±0.05 mm for consistent performance across production runs.
- Full Thermal Range: From standard NdFeB to high-temperature SmCo, covering ambient through 350°C applications.
Applications
Custom magnetic rod assemblies, sensor and actuator components, magnetic couplings, holding and lifting fixtures, and any application requiring a solid cylindrical magnet as a raw building block.
