Fully Automatic Drawer-Type Dry Powder Magnetic Separator

Working Principle

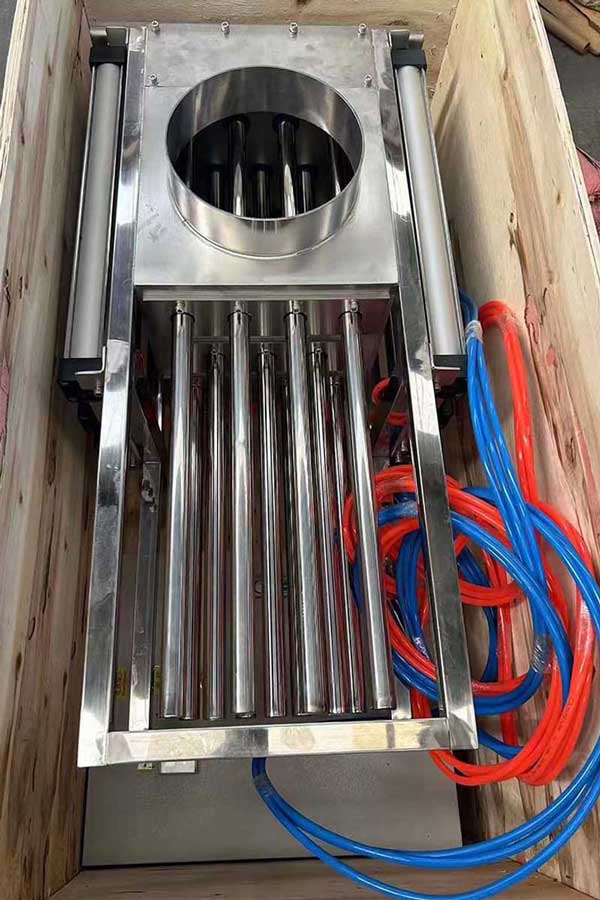

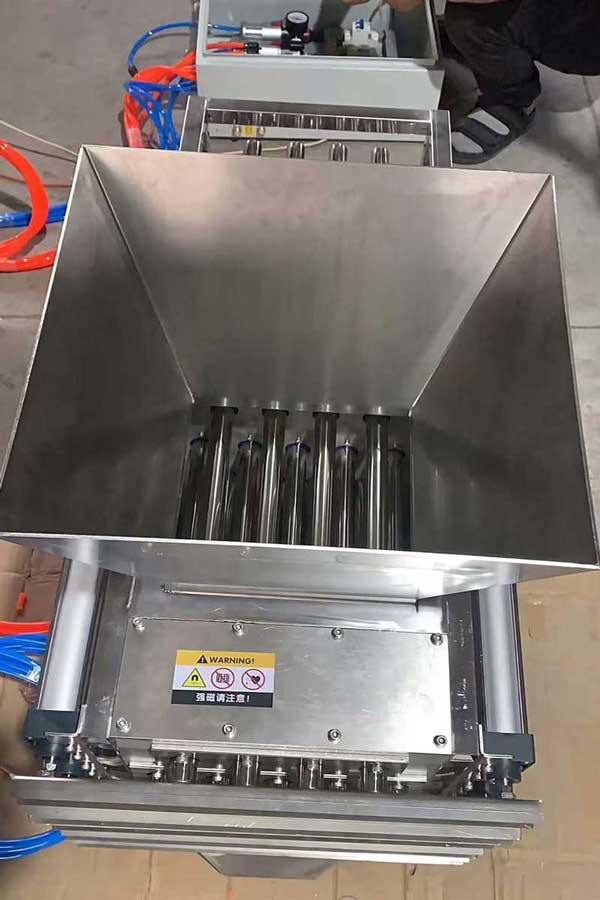

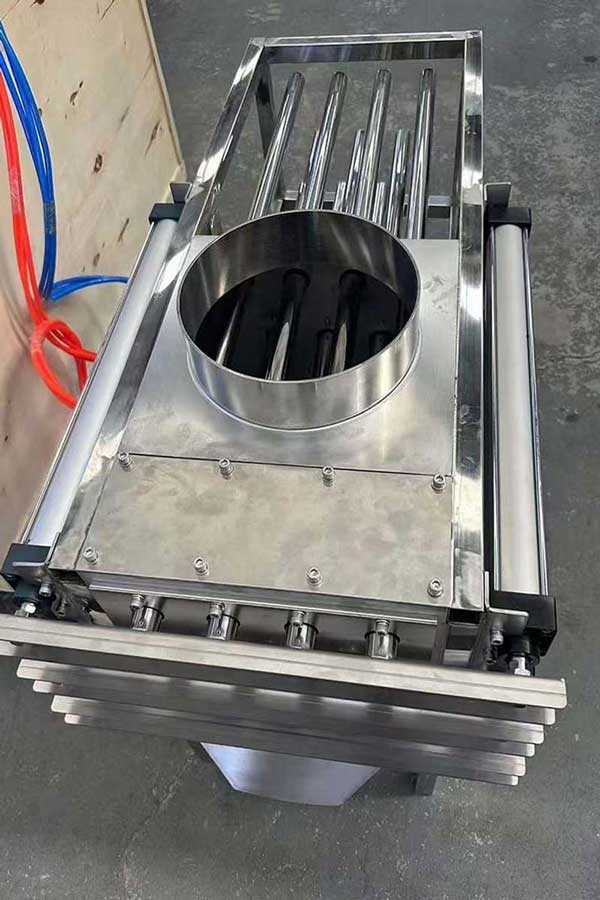

Fully Automatic Drawer-Type Dry Powder Magnetic Separator systems function through a precisely timed automated separation and self-cleaning sequence. During the filtration phase, the dry powder or fine granule stream passes downward through the enclosed multi-tier drawer assemblies, where powerful magnetic elements instantly trap and lock fine ferrous debris, mechanical wear, and rust scales. At pre-programmed intervals governed by the plant control system, the pneumatic actuators automatically slide the drawer grids out of the active product stream into a dedicated debris discharge chute. Once positioned over the waste bin, the internal magnetic elements retract, instantly removing the magnetic field from the sleeve surface and causing the accumulated iron impurities to drop away automatically. This swift self-cleaning cycle ensures the production line never has to stop, achieving true zero-downtime performance.

Structure and Materials

Every Fully Automatic Drawer-Type Dry Powder Magnetic Separator engineered by MagnetGlobal is constructed to meet the highest mechanical and electronic standards required by modern automated processing facilities. The massive outer cabinet, multi-layer drawer frames, internal product chutes, and debris collection vents are constructed entirely from heavy-gauge SUS304 or SUS316L stainless steel. All internal product-contact surfaces undergo a specialized industrial mirror-polishing process to achieve a surface roughness of Ra less than 0.4 micrometers, ensuring smooth powder flow and eliminating potential dead corners where material could stagnate or cross-contaminate. The internal high-flux core leverages premium, high-grade rare-earth Neodymium (NdFeB) magnets arranged in a high-density configuration that resists thermal demagnetization and structural wear over decades of constant cycle operations.

Features and Smart Control Specifications

A defining characteristic of our Fully Automatic Drawer-Type Dry Powder Magnetic Separator is its intelligent integration with factory-wide automation systems. The intense surface magnetic strength of the active elements can be engineered from 10,000 Gauss up to an exceptional 14,000 Gauss, ensuring the capture of sub-micron paramagnetic materials and microscopic iron dust. The system features a centralized PLC control cabinet that allows plant engineers to easily customize cleaning frequencies, valve open-and-close timings, and pneumatic stroke speeds based on the level of contamination and material volume. To prevent hazardous powder blowouts and protect factory air quality, the heavy-duty automatic sliding mechanisms are sealed with premium, dust-tight food-grade silicone or high-wear Viton gaskets. While standard setups operate beautifully at temperatures up to 80 degrees Celsius, custom configurations can be specified with thermal-stabilized internal magnet circuits to safely process hot dry powders up to 150 degrees Celsius coming directly from industrial ovens or spray dryers.

Key Advantages of MagnetGlobal Automated Technology

Investing in our Fully Automatic Drawer-Type Dry Powder Magnetic Separator yields substantial long-term financial benefits, maximized processing security, and a massive reduction in factory labor costs. Unlike manual drawer magnets that depend heavily on operator schedules and require frequent production shutdowns to wipe down the bars, this fully automated system runs continuously 24/7 with zero operational oversight, eliminating human errors and ensuring consistent product quality across every batch. Operating on highly stable permanent magnetic forces means that even during an unexpected factory power failure, the core separation field remains completely active, preventing contaminated material from slipping through to downstream equipment. The powerful pneumatic self-cleaning mechanism requires only standard factory compressed air, translating into remarkably low operational utility costs while dramatically extending the working life of high-precision downstream assets like packaging lines and milling systems.

Target Applications and Industrial Layout Integration

These industrial-grade Fully Automatic Drawer-Type Dry Powder Magnetic Separator systems serve as critical quality-assurance checkpoints globally trusted to purify high-value dry bulk materials before final packaging or critical processing phases. They are heavily relied upon in the advanced lithium battery sector for purifying cathode and anode raw materials, in chemical synthesis plants for treating fine powder pigments, and in sanitary food facilities handling milk powder, protein supplements, starch, flour, and sugar. MagnetGlobal provides full engineering, mechanical blueprinting, and customized integration support. Our expert technical team can design the housing dimensions, flange configurations, inlet orientations, and electronic control interfaces to align perfectly with your existing gravity pipes, pneumatic conveying lines, or centralized factory control rooms, ensuring absolute process reliability and unbeatable separation performance.
